KOMPaaS integration structure

Modified on Tue, 17 Feb at 10:11 AM

Welcome, we have prepared a set of necessary tools and basic rules for working with our API.

Create integration using webhooks

Structure of Basic Events:

VPBX: Incoming call start

Event type:

VPBX: Incoming call start

Event time:

01.01.2026, 00:00:00

Event data:

ivrSchemaId: 0000
 userEventType: "VpbxInboundCallStart"
 channel: "SIP"
 privilege: "user,all"
 exten: "s"
 channelState: 4
 callerIdNum: 40000000000
 systemName: 123
 dateReceived: "Yan 01, 2026, 0:00:00 PM"
 context: "signal-vpbx-inbound-call"
 callerID: 40000000000
 event: "VpbxInboundCallStart"
 timestamp: 1765978000
 callId: "000-0000000000.00000000"
 linkedId: "000-0000000000.00000000"
 callerNumber: 40000000000
 dateReceivedAtUTC: "2026-01-01 00:00:00.721211"
 eventType: "VpbxInboundCallStart"
 priority: 3
 accountId: 000000
 channelStateDesc: "Ring"
 callerIdName: 431200000000
 did: 70000000000
 uniqueId: "000-0000000000.00000000"
 vpbxId: 0000

VPBX: starting an outgoing call

Event type:

VPBX: starting an outgoing call

Event time:

01.01.2026, 00:00:00

Event data:

originateData: ""
 connectedLineNum: 40000000000
 userEventType: "VpbxOutgoingStart"
 channel: "SIP"
 privilege: "user,all"
 exten: "s"
 channelState: 0
 isRedirect: 1
 callerIdNum: "s"
 systemName: 123
 dateReceived: "Yan 01, 2026, 0:00:00 PM"
 context: "signal-outgoing-call"
 event: "VpbxOutgoingStart"
 calledNumber: 40000000000
 timestamp: 1765970000
 callId: "000-0000000000.00000000"
 linkedId: "000-0000000000.00000000"
 connectedLineName: 40000000000
 dateReceivedAtUTC: "2026-01-01 00:00:00.048139"
 eventType: "VpbxOutgoingStart"
 internalNumber: 000
 priority: 11
 accountId: 000000
 callback: 0
 channelStateDesc: "Down"
 did: 40000000000
 uniqueId: "000-0000000000.00000000"
 vpbxId: 0000

VPBX: ending an incoming call

Event type:

VPBX: Ending an incoming call

Event time:

01.01.2026, 00:00:00

Event data:

ivrSchemaId: 00000
 userEventType: "VpbxInboundCallEnd"
 channel: "SIP"
 privilege: "user,all"
 transcribationLanguage: ""
 exten: "s"
 channelState: 6
 duration: 2
 callerIdNum: 40000000000
 file: ""
 systemName: 123
 dateReceived: "Yan 01, 2026, 0:00:00 PM"
 record: 0
 InternalNumber: ""
 transcribationProvider: ""
 transcribation: ""
 context: "signal-vpbx-inbound-call-end"
 schemaBillsec: 0
 callerID: 40000000000
 event: "VpbxInboundCallEnd"
 billsec: 0
 timestamp: 1765970000
 callId: "000-0000000000.00000000"
 linkedId: "000-0000000000.00000000"
 answered: 0
 callerNumber: 40000000000
 dateReceivedAtUTC: "2026-01-01 00:00:00.520961"
 eventType: "VpbxInboundCallEnd"
 priority: 40
 firstAnswer: false
 accountId: 00000
 durationWaiting: 2
 queueName: ""
 time: "00:00:00"
 coreUserId: ""
 channelStateDesc: "Up"
 callerIdName: 40000000000
 did: 40000000000
 uniqueId: "000-0000000000.00000000"
 queue: ""
 vpbxId: 00000

VPBX: ending an outgoing call

Event type:

VPBX: Ending an outgoing call

Event time:

01.01.2026, 00:00:00

Event data:

connectedLineNum: 40000000000
 userEventType: "VpbxOutgoingEnd"
 callBack: 0
 channel: "SIP"
 privilege: "user,all"
 transcribationLanguage: ""
 exten: "s"
 channelState: 5
 answerList:{0000: true
 },duration: 8
 isRedirect: 1
 hangupCauseCode: 16
 callerIdNum: 40000000000
 file: "20260101-00000-0000-70000000000-000000000000000000000"
 systemName: 123
 dateReceived: "Yan 01, 2026, 0:00:00 PM"
 record: 1
 transcribationProvider: ""
 transcribation: ""
 context: "signal-outgoing-hangup-handler"
 event: "VpbxOutgoingEnd"
 calledNumber: 40000000000
 billsec: 0
 timestamp: 1765900000
 callId: "000-0000000000.00000000"
 linkedId: "000-0000000000.00000000"
 answered: 0
 connectedLineName: 40000000000
 dateReceivedAtUTC: "2026-01-01 00:00:00.432797"
 eventType: "VpbxOutgoingEnd"
 internalNumber: 0000
 priority: 16
 firstAnswer: false
 accountId: 0000
 durationWaiting: 8
 coreUserId: ""
 channelStateDesc: "Ringing"
 did: 40000000000
 uniqueId: "000-0000000000.00000000"
 vpbxId: 00000

Structure of other events:

Starting a call in a queue

Event type:

Starting a call in a queue

Event time:

01.01.2026, 00:00:00

Event data:

linkedid: "000-0000000000.00000000"
 cid_num: 40000000000
 eventtime: 1765975061680000
 peeraccount: ""
 eventType: "QUEUE_LINK_START"
 exten: "s"
 accountId: 000000
 userdeftype: "QUEUE_LINK_START"
 appname: "CELGenUserEvent"
 userfield: 00000
 cid_rdnis: ""
 peer: ""
 cid_dnid: 40000000000
 extra:
 {callid: "000-0000000000.00000000"
 queue_name: "Name of your queue"
 queue: 000
 queue_id: 000000
 scenario_id: 00000
 },
 cid_ani: 40000000000
 context: "queue"
 cid_name: 40000000000
 channame: "SIP"
 eventtype: "QUEUE_LINK_START"
 id: 939970000
 amaflags: 36
 accountcode: 000000
 uniqueid: "000-0000000000.00000000"

Ending a call in a queue

Event type:

Ending a call in a queue

Event time:

01.01.2026, 00:00:00

Event data:

linkedid: "000-0000000000.00000000"
 cid_num: 40000000000
 eventtime: 1765886885800000
 peeraccount: ""
 eventType: "QUEUE_LINK_END"
 exten: "h"
 accountId: 000000
 userdeftype: "QUEUE_LINK_END"
 appname: "CELGenUserEvent"
 userfield: 00000
 cid_rdnis: ""
 peer: ""
 cid_dnid: 40000000000
 extra:
 {callid: "000-0000000000.00000000"
 queue_name: "Name of your queue"
 queue: 000
 queue_id: 000000
 scenario_id: 000000
 status: "LOST"
 },
 cid_ani: 40000000000
 context: "queue"
 cid_name: 40000000000
 channame: "SIP"
 eventtype: "QUEUE_LINK_END"
 id: 9378000000
 amaflags: 35
 accountcode: 000000
 uniqueid: "000-0000000000.00000000"

Starting a call to a subscriber in the queue

Event type:

Starting a call to a subscriber in the queue

Event time:

01.01.2026, 00:00:00

Event data:

callId: "000-0000000000.00000000"
 queueId: null
 answered: 0
 callerNumber: 40000000000
 dateReceivedAtUTC: "2026-01-01 00:00:00.434168"
 eventType: "QueueCallEnd"
 startGeneralTime: 1765900000
 internalNumber: 000
 duration: 45
 accountId: 000000
 durationWaiting: 45
 file: 0
 queueName: "Name of your queue"
 record: 0
 billsec: 0
 did: 40000000000
 uniqueID: "000-0000000000.00000000"
 queue: 000
 whoAnswered: false
 timestamp: 17659000000
 vpbxId: 00000

Completing a call to a subscriber in the queue

Event type:

Completing a call to a subscriber in the queue

Event time:

01.01.2026, 00:00:00

Event data:

callId: "000-0000000000.00000000"
 queueId: null
 answered: 0
 callerNumber: 40000000000
 dateReceivedAtUTC: "2026-01-01 00:00:00.434168"
 eventType: "QueueCallEnd"
 startGeneralTime: 1765970000
 internalNumber: 000
 duration: 45
 accountId: 00000
 durationWaiting: 45
 file: 0
 queueName: "Name of your queue"
 record: 0
 billsec: 0
 did: 40000000000
 uniqueID: "000-0000000000.00000000"
 queue: 000
 whoAnswered: false
 timestamp: 1765970000
 vpbxId: 00000

Structure of other events:

Call recording file ready

Event type:

Call recording file ready

Event time:

01.01.2026, 00:00:00

Event data:

callId: "000-0000000000.00000000"
 accountId: 000000
 fileName: "20260101-160000-40000000000-40000000000-000000000000000000000"
 data:
 {callId: "000-0000000000.00000000"
 fileName: "20260101-160000-40000000000-40000000000-000000000000000000000"
 eventVersion: 2
 numA: 40000000000
 type: "call"
 transcribationLanguage: ""
 eventTs: 17659782000000
 numB: 40000000000
 objectType: ""
 accountId: 000000
 objectNum: ""
 transcribationProvider: ""
 transcribation: 0
 eventName: "record_upload_done"
 vpbxId: 00000
 },
 eventType: "record_upload_done"
 id: "590bff05-0f9b-4205-8312-1d431d8000000"
 type: "external_event"
 vpbxId: 00000

VPBX: Question-Answer element replica

Event type:

VPBX: Question-Answer element replica

Event time:

01.01.2026, 00:00:00

Event data:

linkedid: "000-0000000000.00000000"
 link_uniqueid_term: "000-0000000000.00000000-1765970000-3"
 speechkit_id: 0000
 speechkit_dialog_id: 0000000
 eventType: "SpeechKitDialog"
 dialog_value: ""
 server_id: 32
 accountId: 000000
 vpbx_id: 00000
 number: 40000000000
 account_id: 000000
 dialog_type: "answer"
 uniqueid: "000-0000000000.00000000"
 event_time: "2026-01-01T00:00:00.918152Z"
 did: 740000000000
 vpbxId: 00000

How to create a webhook via API

In the top menu, go to the "Integrations" section → "API Methods" tab;

In the left menu, select "Integrations";

Find Webhooks methods:

/webhook/get

/webhook/create

{
 "name":"New webhook",
 "url":"<https://example.ru>",
 "method":"get",
 "headers": {},
 "body":null,
 "query": {
 "from":"John",
 "to":"To ${{contact_name}}"
  },
 "logic": {},
 "event_id":1,(Обязательный параметр) All methods can be viewed here/event/get
 "is_retriable":false,
 "bodyDataType":"json",
 "filter_id":1,
 "allVariables":true,
 "ignore_response":false
 }

/webhook/update
/webhook/duplicate
Also, to create webhooks via API you will need an API token, it is located in the Integrations and API v2.0 section in the 2nd top bar, "Tokens' tab.

Frequently asked questions about tokens (API key)
An API token (or API key) is a unique identifier used for authentication and authorization when accessing an API (Application Programming Interface).
- The token can be viewed by an employee with Administrator or Account Owner role;

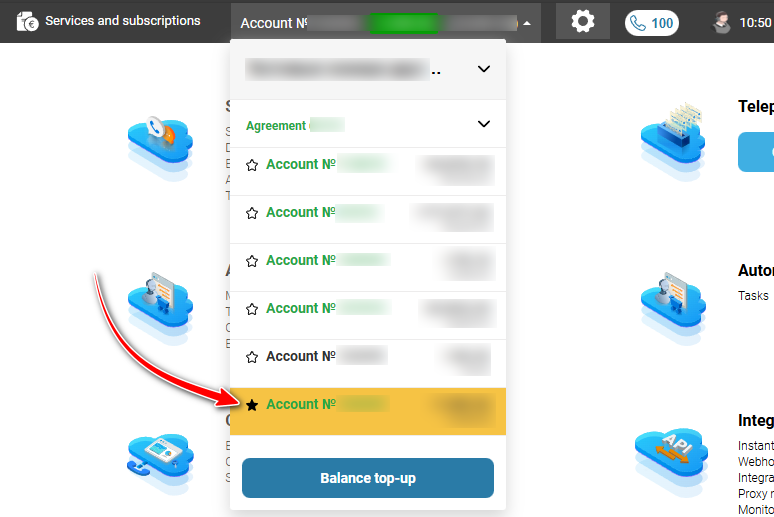

- The token is linked to an employee and contract (if the user has many contracts, you can make the desired contract default (click on the star before the contract) and then a token will appear in it.
- How to call a token from a non-default account
  key - x-account-id — Variable name;
  value — Account number in which authorization should take place.
  If the account number is passed in the header, authorization will occur in it; if the header is empty, authorization will be in the default account (where the star is)
  Curl example:
  curl --location
  'https://integration.kompaas.tech/api/protected/api/integration/config/get?config_id=####' \
  --header 'accept: application/json' \
  --header 'Content-Type: application/json' \
  --header 'Sec-Fetch-Mode: cors' \
  --header 'x-account-id: ######' \
  --header 'Authorization: Bearer ' \
  --data ''
General questions and useful links:

If you have any questions related to integration or encounter problems when creating an integration, please contact us at +43 1 412 00 99 or email support@kompaas.tech.
